High Reliability Infrared Proximity Switch With Multiple Protection Function

Name: High Reliability Infrared Proximity Switch With Multiple Protection Function
Brand: Zhongde
Price: 1 USD

Model Number : E3F-DS30C4

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Name : Infrared Proximity Switch

Feature : Multiple Protection

Connect time jects : 1.5ms

Voltage : DC

Output Method : NPN

Induction Method : Normally open

Contact Now

High Reliability Infrared Proximity Switch With Multiple Protection Function

Description

Our photoelectric sensors provide non-contact, accurate detection of targets. These sensors can check for presence, color, distance, size, shape, and many more applications. They perform at longer distances than alternative sensing methods, while offering many mounting options and the ultimate in flexibility.

Details

Three-wire

NPN

Normally open

Parameter

Connect time	1.5ms
Light source	Infrared light 660nm
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Features

IP67 protection structure (IEC)
Reverse power protection, short circuit protection, can be directly connected to the PLC
Economical and simple operation
Long life and high reliability, strong environmental resistance
Red LED reality can detect sensor working status

Product Tags:

infrared proximity sensor switch

photoelectric proximity switch

China High Reliability Infrared Proximity Switch With Multiple Protection Function wholesale

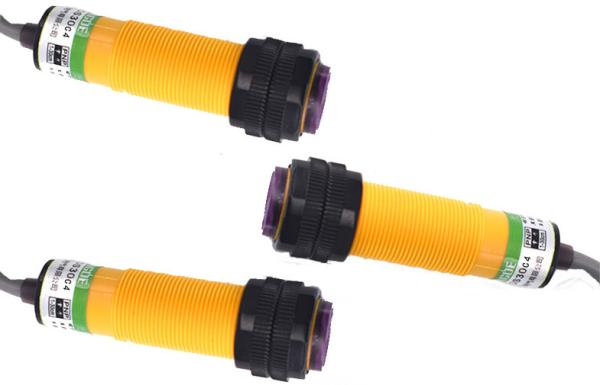

High Reliability Infrared Proximity Switch With Multiple Protection Function Images
